Hydraulic gate operating mechanism series
Vic Hydraulics provides:
QPPY series flat gate hydraulic cylinder
QPKY series flat quick gate hydraulic cylinder
QHLY series exposed arc gate hydraulic cylinder
QHSY series deep-hole arc gate hydraulic cylinder
QRWY series horizontal wicket gate hydraulic cylinder
Can be customized according to customer requirements
Classification:
Key words:
Vic hydraulic, hydraulic pump

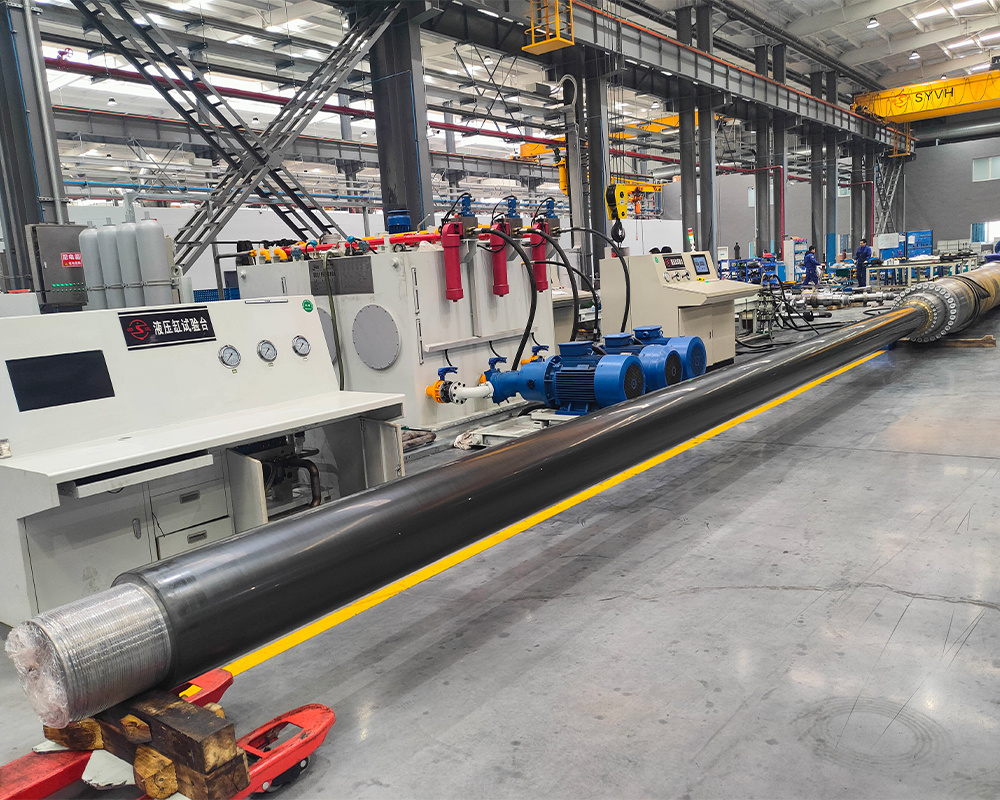

Introduction of Hydraulic Cylinder
QPPY series plane gate hydraulic cylinder
Function:
This series of hydraulic cylinders are divided into QPPY-I type plunger hydraulic cylinder, QPPY-II type piston hydraulic cylinder
Specifications:
There are 13 specifications for QPPY-Ⅰ and 21 specifications for QPPY-Ⅱ
Push/Pull:
Maximum up to 10000KN, cylinder diameter 800mm
Maximum stroke: 20M
QPKY series plane quick gate hydraulic cylinder
Function:
It is applicable to the opening and closing of the quick accident gate at the entrance of water turbine generator set and pressure regulating underground swimming in water conservancy and hydropower projects, and can also be used for the opening and closing of the general plane accident gate.
Specifications:
This series of hydraulic cylinder can be set at the upper end of the hydraulic cylinder auxiliary oil tank.
Push/Pull:
Maximum up to 10000KN, cylinder diameter 800mm
Maximum stroke: 20M

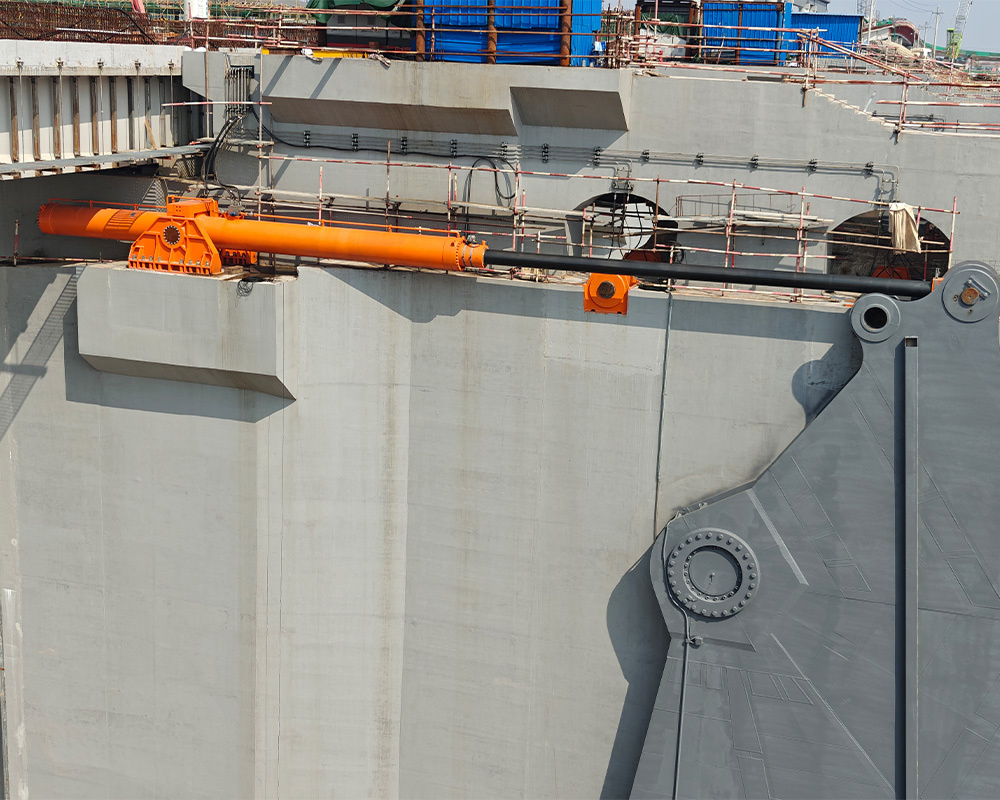

QHLY series exposed top type arc gate hydraulic cylinder
Function:
It is suitable for the opening and closing of the exposed top arc gate in water conservancy and hydropower projects. When the low-head down-the-hole arc gate is provided with two lifting points and can be closed by the gate's own weight, this series of products can also be used.
Specifications:
QHLY series hydraulic cylinder a total of 15 kinds of specifications
Push/Pull:
Maximum up to 6000KN, cylinder diameter 800mm
Maximum stroke: 20M
QHSY series deep hole radial gate hydraulic cylinder
Function:
The hydraulic cylinder structure of this series of hydraulic cylinders is a swing structure supported by the central hinge shaft, which is connected with a single lifting point on the gate and can meet the working requirements of dynamic water opening and closing and partial opening.
Specifications:
QHSY series hydraulic cylinder a total of 14 kinds of specifications
Push/Pull:
Up to 10000KN, cylinder diameter 1000mm
Maximum stroke: 20M

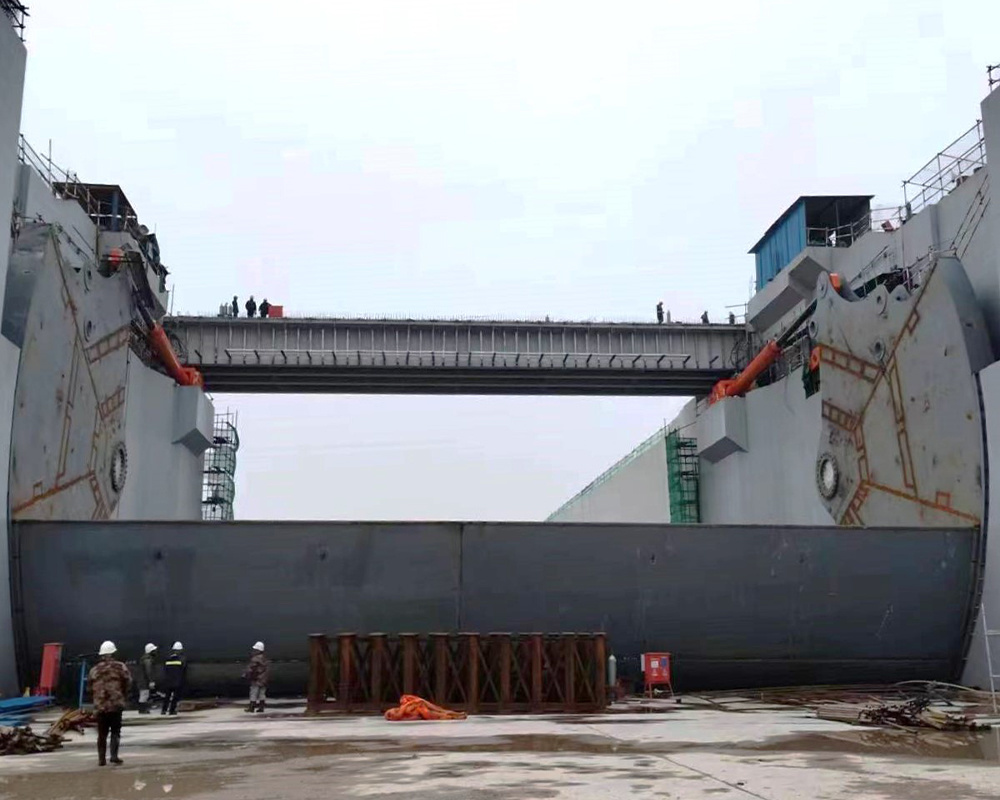

QRWY series horizontal herron gate hydraulic cylinder
Function:
It is applicable to the opening and closing of the herrings gate and the gate of inland navigation buildings. This series of products should be required by the user, after taking appropriate technical measures, can also be used in the sea, river junction section of the navigable buildings.
Specifications:
QRWY series hydraulic cylinder a total of 15 kinds of specifications
Push/Pull:
Maximum up to 6000KN, cylinder diameter 800mm
Maximum stroke: 20M
Product Advantages
Compact host structure
Stable and reliable operation
Easy for remote and centralized control operation
Excellent comprehensive technical and economic performance
